12~432F Fiber Optic Pigtail Fanout

Brand Name : Dawnergy

Model Number : DA-SC-XXM-SM-FO-0.9L

Certification : ANATEL,CE,ROHS

Place of Origin : CHINA

MOQ : 1000

Price : 1500 USD

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 100000pcs per day

Name : 12~432F Fiber Optic Pigtail Fanout

Connector : SC/UPC

Fiber : G652D

Jacket Material : PVC or LSZH

Contact Now

12~432F Fiber Optic Pigtail Fanout

Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.

Features

  • Low insertion loss
  • High return loss
  • Good repeatability
  • High temperature stability

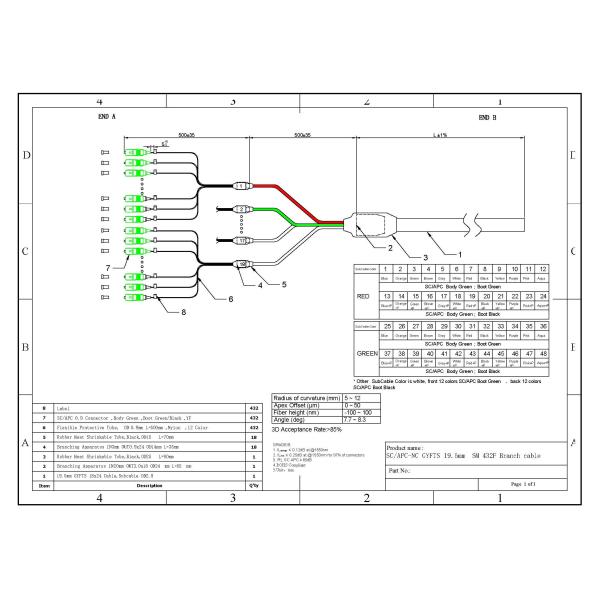

12~432F Fiber Optic Pigtail Fanout

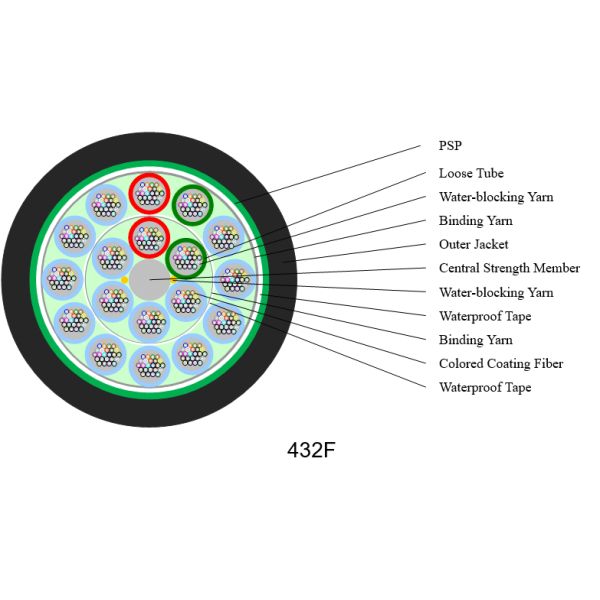

Cable Profile View

12~432F Fiber Optic Pigtail Fanout

Cable Parameters

Items Specifications
Fiber Count 24~432F
Colored Coating Fiber Dimension 250µm±15µm
Color

Blue,Orange,Green,Brown,

Grey,Natural,Red,Black,

Yellow,Purple,Pink,Aqua
Colored Coating Fiber wish Color Point Dimension 250µm±15µm
Color

Blue,Orange,Green,Brown,

Gray,White,Red,Black,

Yellow,Purple,Pink,Aqua
Fibers in One Tube

12 fibers (24,48F)

24 fibers (288,432F)
Loose Tube Dimension

1.95 mm±0.05mm (24, 48F)

2.8mm±0.1mm (288,432F)
Material PBT
Color

Blue,Orange,Green,Brown (24,48F)

Red,Green,Natural,Natural,

Natural,Natural,Natural,Natural,

Natural,Natural,Natural,Natural (288,432F)
Central Strength Member Diameter

1.5mm (24, 48F)

3.0mm (288F)

2.8mm (288F)
Material FRP
Outer Jacket Dimension

9.8 mm±0.5mm (24, 48F)

19.0mm±0.5mm (288F)

19.5 mm±0.5mm (432F)
Material PE
Color Black

Mechanical and Environmental Characteristics

Items Unite Specifications
Tension(Long Term) N

600 (24, 48F)

1000 (288,432F)
Tension(Short Term) N

1500 (24, 48F)

3000 (288,432F)
Crush(Long Term) N/10cm 300
Crush(Short Term) N/10cm 1000
Min. Bend Radius(Dynamic) mm 20D
Min. Bend Radius(Static) mm 10D
Installation Temperature ℃ -10～+50
Operating Temperature ℃ -20～+60
Storage Temperature ℃ -20～+60

Ferrule End Face Inspection Criteria

12~432F Fiber Optic Pigtail Fanout

Defects

Zone A

(Area Near Core)

≤40um

Zone B

(Cladding)

40~125um

Zone C

(Coating)

125~250um
Scratch (width) None Light scratch (white): None >3um: None
Dark scratch (black): None
Pits & Irremovable material (Diameter) None

≥2um: None

<2um: 2pcs allowed

≥10um: None

<10um: total<20um
Chipping (Diameter) None
Crack/dust/contamination None
Epoxy ring Width<2um, total length≤1/2 fiber diameter

Ferrule End Face Geometry Parameters

Parameters UPC APC
Radius of Curvature 10~25mm 5~12mm
Fiber Undercut or Protrusion ≤ 100 nm ≤ 100 nm
Apex Offset ≤ 50 μm ≤ 50 μm
Polishing Angle 8 +/- 0.3 degree


Product Tags:

12~432F Fiber Optic Pigtail Fanout



SCAPC Fiber Optic Pigtail



G652D Pigtail


Quality 12~432F Fiber Optic Pigtail Fanout wholesale

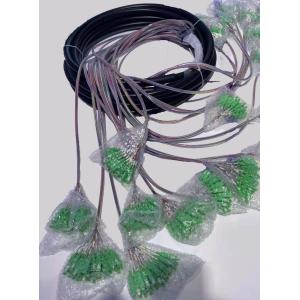

12~432F Fiber Optic Pigtail Fanout Images
